Fritsjurgens Pivot Hinge Templates

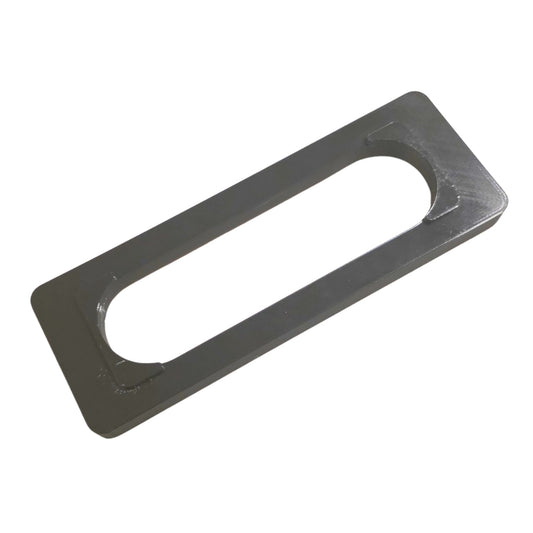

Fritsjurgens router jig templates for the quick and precise installation of all the top and bottom pivot mechanisms.

Select the tools required depending on what brand of large plunge router you have. If you are unsure about setting up your router or using the TIDY TRADIE Router Jig 2.0, please email Tony@tidytradie.com.au or use the contact form.

Note the large bottom pivots require 4 cutting positions due to the faceplate and long body length.

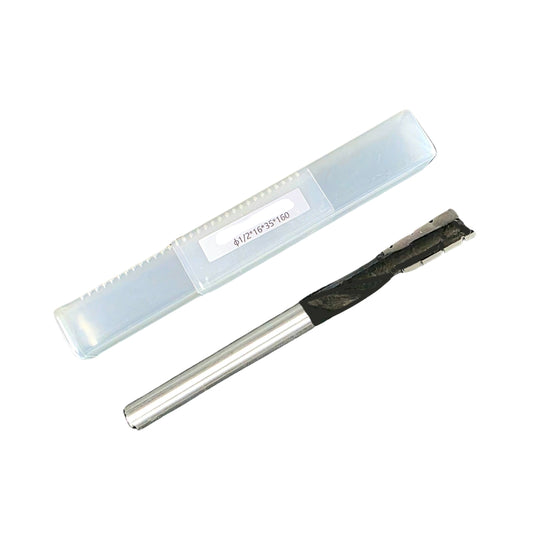

Long reach cutters are needed for the large pivot depth of 100mm. See our 161mm long reach plunge cutter.

Please check the tutorial section for a better understanding of what is required.

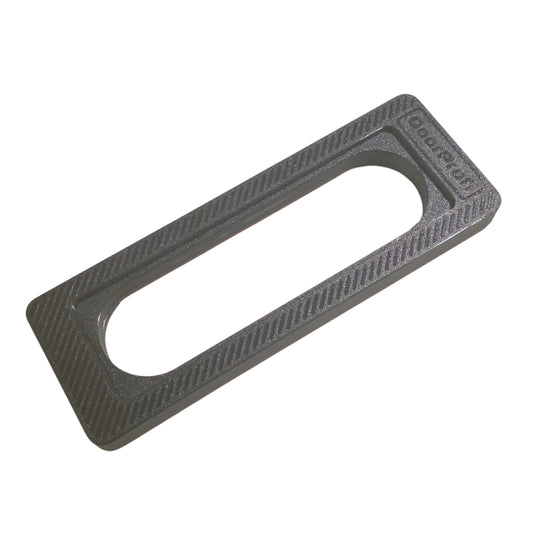

These templates can only be used with the TIDY TRADIE Router Jig 2.0 and optional Doorprofi compensator.
