Vault Euro Mortice Locks

(Swing Door Application)

The Vault Smart Locks Euro Mortice Lock is engineered for swing-style doors and is compatible with Vault Prime, Eclipse, Axis, Phantom, Guardian, Alpha, and Zenith smart lock models.

This mortice lock is suitable for installations on both timber & aluminium doors, including projects where existing door preparations and fittings are present. The lock allows standard latch operation, with the option to lift the handle to manually engage the deadbolt for additional security.

Key Features

• Suitable for Residential and Commercial applications
• Performance tested in line with ANSI / BHMA durability standards
• Designed to meet BHMA Level 2 and Level 3 requirements
• Stainless steel construction for the lock body and latching components
• Supports standard European-style euro profile cylinders
• Dead-latching mechanism with SS304 stainless steel deadbolt
• Lift-to-lock function for manual deadbolt engagement
• Designed specifically for use with Vault Smart Locks

Specifications

• Latch: Reversible
• Backset options: 28mm, 30mm, 35mm, 40mm, 45mm, 50mm, 60mm, 70mm
• Lock centres: 85mm
• Faceplate size: 240mm × 22mm × 3mm
• Material: 304 stainless steel

Installation Notes

The appropriate backset should be selected based on the distance between the door edge and the handle position.

Please note:

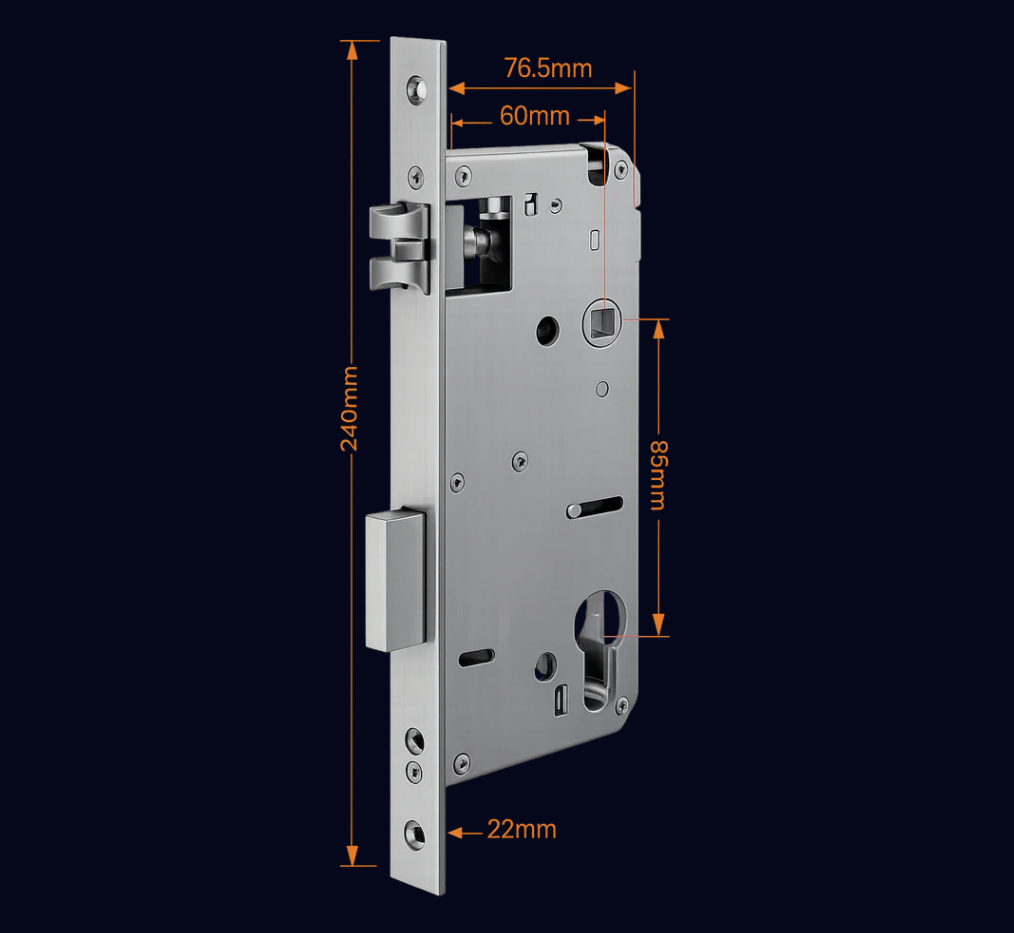

This mortice lock uses an 85mm pitch (measured from the centre of the spindle to the centre of the cylinder), as shown in the product images.
